Oxford Advance (with 4-point spreader bar)

Oxford Advance (with 4-point spreader bar)
Claim zero VAT ✅
Oxford Advance (with 4-point spreader bar)

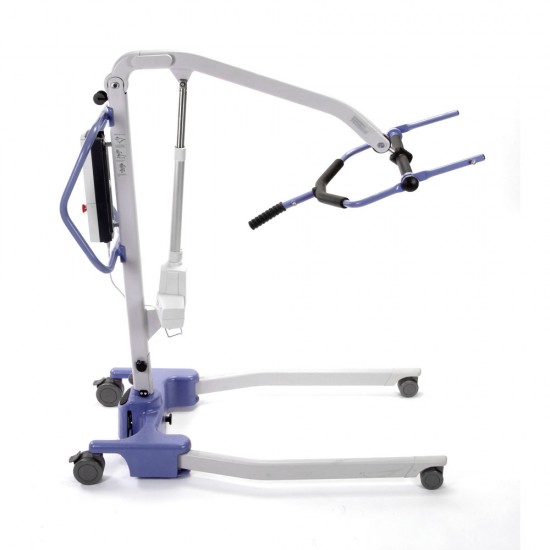

Oxford Advance Folding Hoist with 4 point spreader bar

The  Oxford Advance is compact and easy to manoeuvre. The exceptional foldable design ensures easy storage and onward transportation. Oxford Advance Folding HoistThe Advance is small and versatile and can lift up to 155 kg (24 st). The award winning Oxford Advance patient hoist is a real stride forward in patient lift design and performance. It uses the latest technologies including the smart monitor, which produces diagnostics to ensure the Advance is always functional. The Oxford Advance needs NO tools to achieve a folded position. This functionality gives service users the ability to take the Oxford Advance on holiday. The Oxford Advance's unique leg design ensures the hoist will get even closer to the widest of restrictions. This is especially useful when encountering large chairs, Divan beds and wheelchairs. The large handle allows for easier maneuvering for the carer to ensure a safe movement with no strain.

The Oxford Advance folding hoist will lift a person weighing a maximum of 155 kg / 24 st. The Advance's incredible lifting range covers a variety of transfers including:

- Bed to Chair

- Chair to Chair

- Floor to Chair

- Chair to bath

Specifications

Safe Working Load: 155 kg

Maximum Overall Length: 1460 mm (57.5")

Minimum Overall Length: 1400 mm (55.1")

Maximum Overall Height: 2065 mm (81.3")

Minimum Overall Height: 1460 mm (57.5")

Spreader Bar -Maximum Height: 1910 mm (75.2")

Spreader Bar -Minimum Height: 430 mm (16.9")

Height at Maximum Reach: 1310 mm (51.5")

Reach at Maximum Height: 650 mm (25.6")

Reach at Minimum Height: 400 mm (15.7")

Turning Radius: 1630 mm (64.2")

Legs Open (External Width): 1150 mm (45.2")

Legs Open (Internal Width): 1020 mm (40.1")

Legs Closed (External Width): 670 mm (26.4")

Legs Closed (Internal Width): 550 mm (21.6")

Overall Height Of Legs: 120 mm  (4.7")

Ground Clearance: 35 mm (1.4")

Front Twin Castors: 100 mm (4")

Rear Brake Castors: 100 mm (4")

4-point Positioning Cradle (Maximum Height): 1550 mm (61.0")

4-point Positioning Cradle (Minimum Height usable): 390 mm (15.4")

Weights:

Total (incl 6-point spreader bar): 88 lbs (40 kg)

Power Pack: 6.6 lbs (3 kg)

4-point Positioning Cradle (manual operation): 13.2 lbs (6 kg)

4-point Positioning Cradle (powered operation): 19.8 lbs (9 kg)

Features

-Has a safe working load (SWL) of 155 kg

- Easy to manoeuvre with exceptionally large push bar

- Can be easily compacted and folded

- Ergonomic design

- Smart TM Monitor control box diagnostic results

Whats Included:

- 6-Point Spreader Bar

- Battery

- Charger

- 5 year Warranty on Hoist, actuator and control box

- 1 year Warranty on battery, charger and handset and castors

- If a call out is needed, this service is chargeable.

Slings

- All Day Slings

- Standard Slings

- Toilet Slings


£1,956.00
Ex Tax: £1,630.00
  • Stock: In Stock
  • Model: OXF-ADVANCE-S + 0Y0146
  • Weight: 35.00kg
  • Dimensions: 0.00cm x 22.00cm x 17.00cm
  • JAN: 1980
  • MPN: OXF-ADVANCE-S
