← Back to Search > Oxford Maxi 180 Spare Parts
📋 Go to Parts List

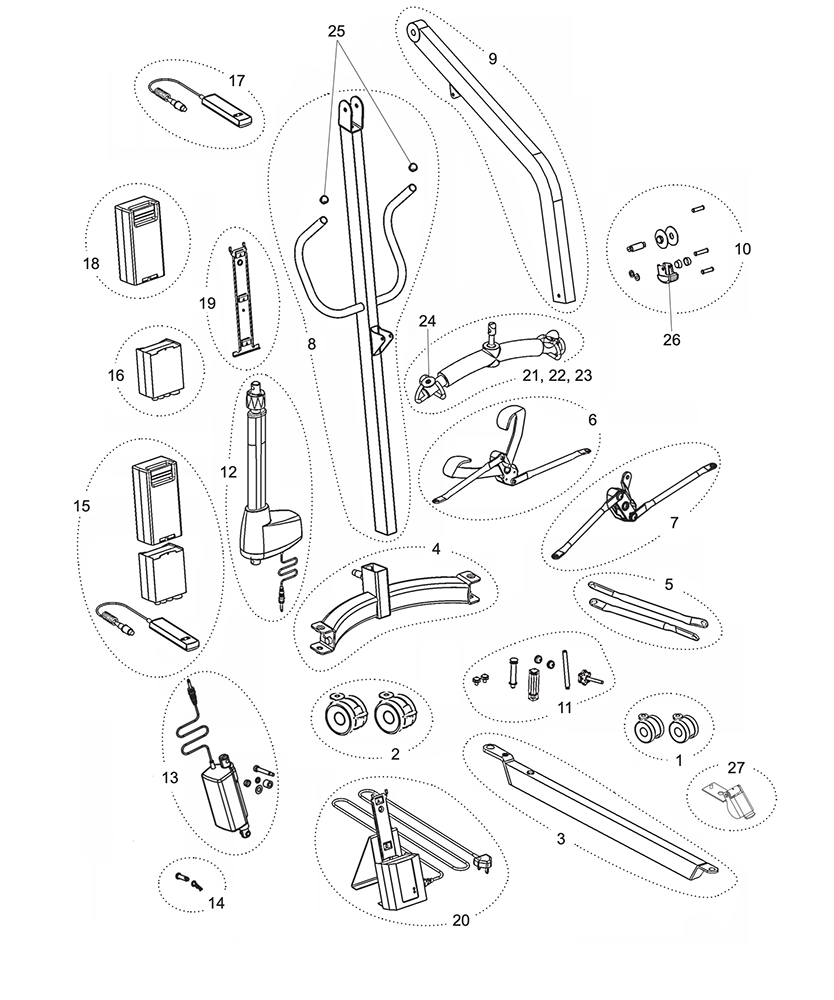

Diagram

Oxford Maxi 180 Spare Parts
📱 Click image to enlarge

Available Spare Parts

No.ModelProductPriceQuantity
1 SP39001256 Oxford Front Castors 75 mm £66.56
2 SP39001257 Oxford Rear Castors 100 mm £88.28
3 SP31009208 Oxford Leg £142.85
4 SP39001265 Oxford Cross Member £285.72
5 SP39001264 Oxford Tie Rods With Fixings (Pair) £51.03
6 SP39001275 Oxford Foot Pedal Assembly £198.99
7 SP39001405 Oxford Leg Mechanism Assembly £104.61
- SP39001189 Oxford Classic adhesive foot pedal pads £38.03
- SP39001190 Oxford Foot pedal fastening kit £51.03
- SP39001181 Oxford Foot pedal pivot cover £99.49
8A SP39001261 Oxford Mast £271.68
8B SP39001404 Oxford Mast (Incl. Fixings) (electric leg models only) £298.47
9 SP39001259 Oxford Boom £251.28
10 SP39001268 Oxford Top Fixing Kit £65.05
11 SP39001269 Oxford Base Fixing Kit £81.63
12 SP39001263 Oxford Actuator £562.30
- SP11013922 Oxford Actuator Power lead (LA44) £25.80
13 SP39001396 Oxford Leg Actuator £336.83
14 SP39001398 Oxford Lower Actuator Fixing Kit £132.65
15 SP39001274 Oxford Smart Monitor Retro Fit Kit £491.07
16A SP39001167 Oxford Smart Monitor Control Box (1 Channel) £302.91
16B SP39001395 Oxford Smart Monitor Control Box (2 Channel) £400.53
17A SP39001180 Oxford Handset (Smart Monitor Only) £80.14
17B SP39001394 Oxford Electric Leg Handset 4 Buttons £88.28
- SP39001178 Oxford Actuator reset handset £124.96
- SP39001179 Oxford Smart Monitor Service Reset Handset £124.96
18 SP11012180 Oxford Battery pack £78.58
19 SP39001201 Oxford Mounting Bracket £63.78
20 SP39001183 Oxford Battery Charger (with power lead) £210.00
- SP11012183 Oxford Charger lead (UK) £44.64
- SP11012184 Oxford Charger lead (EU) £44.64
21 SP31009237 Oxford Spreader Bar (Small) £158.16
22 SP31009196 Oxford Spreader Bar (Standard) £172.20
23 SP31009197 Oxford Spreader Bar (Large) £192.60
- SP11014480 Oxford Classic small spreader bar cover £54.68
- SP11014250 Oxford Classic standard spreader bar cover £60.76
- SP11014263 Oxford Classic hoist large spreader bar cover £66.83
- SP39001172 Oxford Bar Fixing Kit £80.36
24 SP39001304 Oxford Spreader Bar Sling Retaining Washer Kit £23.09
- SP39001279 Oxford Classic spreader bar fulcrum pin cap £12.75
- SP11014469 Oxford Decal set £48.46
- SP39001198 Oxford Classic circlips £29.33
25 SP39001182 Oxford Push Handle Caps £11.55
26 SP39001280 Oxford Boom end caps £67.61
- SP39001277 Oxford 19mm grey screw covers £20.37
- SP39001278 Oxford 25mm grey screw covers £25.80
- SP39001397 Oxford Rectangular tube insert for leg actuator bracket - white £71.43
- SP39001399 Oxford 19mm uni cap - white £8.92
27 SP31009215 Oxford Straight-line steering device £34.44
Total Items:
×
