Oxford Midi 180 EM Electric Hoist
The Oxford Midi 180 EM Electric Hoist is a versatile and compact mobile lifting solution, designed for use in community care and nursing home environments. Despite its modest footprint, this hoist boasts a robust safe working load of 180 kg (28 stone), making it suitable for a wide range of patient transfer tasks.
Its electrically powered lift mechanism ensures efficient operation, while the integrated manual emergency lowering function provides added safety and peace of mind in the event of power failure. The hoist’s adjustable leg base allows for easy access around obstacles such as beds, wheelchairs, and toilet bases, and includes a reliable leg-locking mechanism to prevent accidental movement.

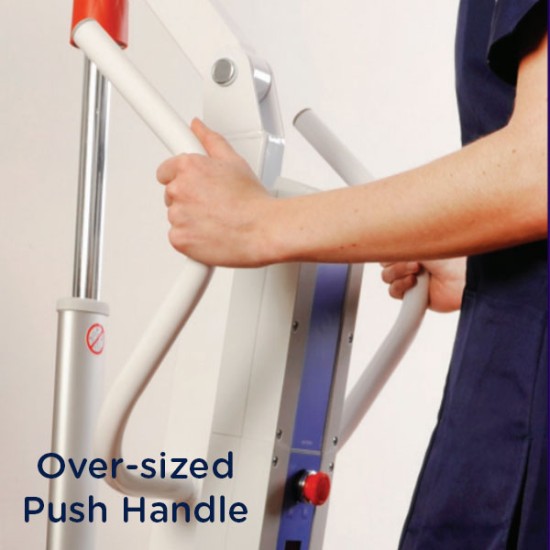

High-grade castors with a low profile provide smooth mobility and allow the hoist to slide easily under most furniture. Rear braked castors further enhance stability during transfers. A large push handle offers excellent grip and control, assisting carers in manoeuvring the hoist with ease.

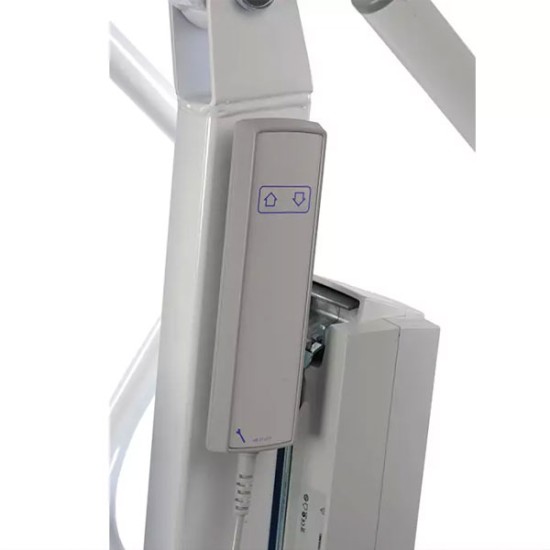

The ergonomically designed angled boom makes floor-level lifting safer and more accessible, while the padded spreader bar adds comfort and protection for the user. The intuitive handset simplifies operation, allowing caregivers to maintain focus on the person being transferred.
The Oxford Midi 180 EM is ideal for a wide range of everyday transfers, including:
- Bed to Chair
- Chair to Chair
- Floor to Chair
- Chair to Bath
This professional-grade hoist includes essential accessories such as a spreader bar, battery, and charger. It is backed by a 5-year warranty on the frame and actuator, and a 1-year warranty on the battery, handset, charger, and castors. Please note: call-out services are available but may be chargeable.
Specification | Measurement |
---|---|
Length | 1225 mm (49.5") |
Width (Legs Open) | 1170 mm (46") |
Internal Width (Legs Open) | 1070 mm (42") |
Width (Legs Closed) | 600 mm (23.5") |
Internal Width (Legs Closed) | 540 mm (21.5") |
Overall Height of Legs | 100 mm (4") |
Maximum Overall Height | 1840 mm (72.5") |
Minimum Overall Height | 1240 mm (49") |
Maximum Spreader Bar Height | 1660 mm (65") |
Minimum Spreader Bar Height | 525 mm (20.5") |
Spreader Bar Height at Maximum Reach | 1060 mm (42") |
Spreader Bar Reach at Maximum Height | 420 mm (16.5") |
Spreader Bar Reach at Minimum Height | 440 mm (17.5") |
Maximum Reach | 655 mm (26") |
Turning Radius | 1235 mm (48.5") |
Front Castors Diameter | 75 mm (3") |
Rear Castors Diameter | 100 mm (4") |
Mast and Boom Weight | 20.5 kg (45 lbs) |
Base Weight | 11.5 kg (25 lbs) |
Mobile Hoist Weight | 32 kg (70 lbs) |
Maximum User Weight | 180 kg (28 stone) |
