Luggie TravelchairWoburn Ultimate Plus Size Profiling Bed for Bariatric Patient Care

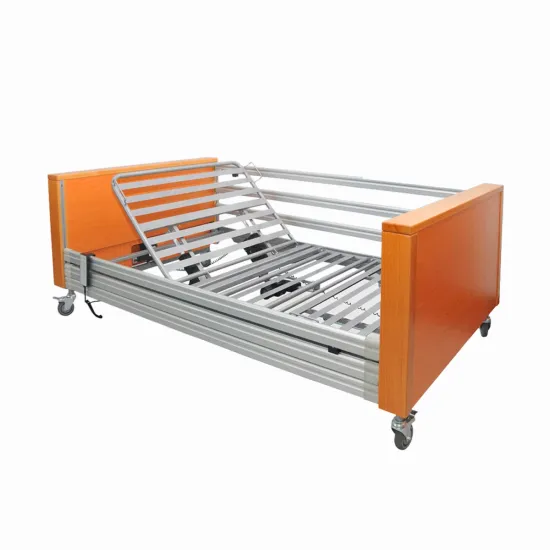

Engineered with reinforced aluminium side rails and a discreet under-bed strengthening bar, the Woburn Ultimate Plus Size Profiling bed offers exceptional structural integrity and long-term durability. It delivers a safe working load of up to 381kg and supports a maximum user weight of 317kg, making it suitable for a wide range of bariatric care applications. These strength-focused design elements provide reassurance for carers and users alike, ensuring stability during profiling, repositioning, and transfers.
To accommodate different body sizes and comfort requirements, the bed is available in both 1200mm and 1400mm width options. For taller individuals, an optional 200mm length extension can be added, helping to maintain correct posture and full-body support while reducing pressure on vulnerable areas. The generous sleeping surface allows users to reposition more freely, supporting comfort and dignity throughout daily use.

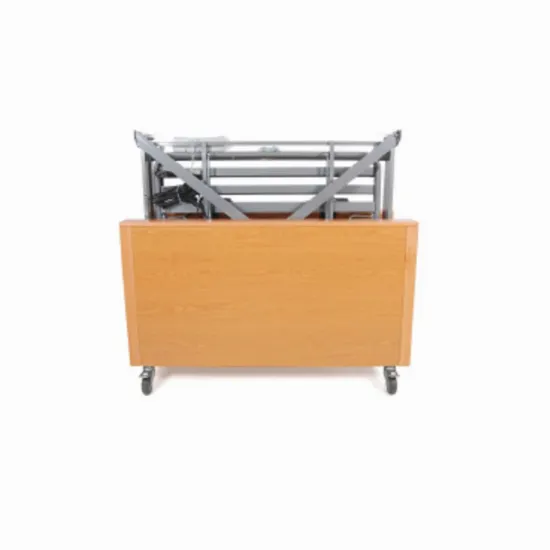

Its compact size provides the right balance between stability and manoeuvrability, and it's wide enough to provide a comfortable ride, but narrow enough to fit through standard doorways, aisles, and elevators, making it an excellent choice for indoor and public spaces!
Key Features
- Safe working load of 381kg
- Maximum user weight of 317kg
- Available in 1200mm and 1400mm widths
- Optional 200mm length extension for taller users
- Adjustable height ranges from 275mm to 690mm
- Electric backrest and knee break with mechanical lower leg support
- Autoregression backrest system - preventing the user from sliding down the bed when lifting the backrest up
- Trendelenburg positioning as standard
- Low-voltage electrical system with no mains voltage on the chassis
- In-built emergency battery back-up
- Aluminium side rails with two-handed release mechanism
- Wooden head and footboards with optional padded headboards
- In-built stability system
- Braked wheel castors for stability and mobility
- Compatible with mattresses up to 260mm deep
- Easy-clean design compliant with MHRA guidelines
- Quick-release actuators and replaceable components
- Supplied with a comprehensive user manual
- Seven-year frame warranty and five-year warranty on woodwork and electrics
The aluminium side rails are designed with a secure two-handed release mechanism that requires deliberate action to operate, helping to prevent accidental lowering and supporting safer use. When paired with compatible mattresses up to a maximum depth of 260mm, the bed supports compliance with bed rail safety guidance. Wooden head and footboards add warmth and a domestic feel, with optional padded headboards available for enhanced comfort and appearance.
Braked wheel castors on the Woburn Ultimate Plus Size Profiling Bed provide added stability when the bed is stationary while allowing smooth movement during transportation. Hygiene and maintenance are simplified through easy-clean surfaces and a design that supports effective infection control in line with MHRA guidelines. Serviceability is enhanced with quick-release actuators, replaceable actuator pistons, and a replaceable PCB, helping to reduce downtime and extend product lifespan.
Benefits
- Provides reliable support for plus-sized and bariatric patients
- Compact and easy to transport
- Enhances patient comfort through pressure-reducing profiling features
- Improves carer safety with ergonomic height adjustment
- Reduces risk of accidental side rail operation
- Supports safer transfers and repositioning
- Maintains essential functionality during power outages
- Accommodates a wide range of body sizes and care needs
- Promotes dignity with a non-clinical appearance
- Simplifies cleaning and infection control routines
- Minimises downtime through service-friendly design
- Offers flexibility through compatible mattresses and accessories
- Delivers long-term value with extensive warranty coverage
A wide range of compatible active and static plus-size mattresses are available, allowing the bed to be tailored to individual pressure management and comfort needs. Accessories (sold separately) such as an under-bed light, wireless alarm system, side rail bumpers, and a lifting pole further enhance safety, visibility, and ease of use. Supplied with a comprehensive user manual and supported by a seven-year warranty on the frame and five-year warranty on woodwork and electrical components, the Woburn Ultimate Plus Size Profiling Bed for Bariatric Patient Care represents a reliable, long-term investment in high-quality bariatric care equipment.
Specifications
| Features | Details |
|---|
| Dimensions: | Mattress Platform: 2000mm [L] x 1200mm / 1400mm [W]
Overall Size: 2195mm [L] x 1340mm / 1540mm [W] |
| Max. Mattress Thickness With Side Rails: | 260mm / 205mm |
| Adjustable Height: | 275mm - 690mm |
| Angle of Rest: | Back Rest: 70°
Thigh Rest: 30° |
| Weight: | 157Kg (+17Kg Side Rails) / 188Kg (+17Kg Side Rails) |
| Max. Patient Weight: | 317Kg |
| Safe Working Load: | 381Kg |
| Side Rails: | HLDU110- Aluminium / HHRAIL002- Aluminium |
| Number of Side Rails: | Set of 6 / Set of 4 |
| Medical Product: | Class 1 |
| Motor Unit Protection Class: | IPX4 |
| Material: | Wooden head and footboards with Aluminium side rails |
| Color Options: | Wooden structure with Aluminium |
Customer Reviews
"Confidence in Everyday Care" – Sarah T.
"The strength and stability of this bed have made a noticeable difference for both residents and staff. It feels solid, secure, and very well designed."
"Designed with Comfort in Mind" – David L.
"The profiling functions and generous width provide excellent comfort for larger patients, while the smooth controls make daily care tasks far easier."
"Reliable and Built to Last" - Mark T.
"From installation to daily use, the quality is clear. The warranty and service-friendly design give real peace of mind."
