VAT EXEMPTION
- Stock: In Stock
- SKU: OXF-CALIBRE-WSC
- RRP: £6,855.00
Oxford Calibre Bariatric Hoist
The Oxford Calibre Hoist is ergonomically designed to lift bariatric patients safely. Both sturdy and robust the Calibre Hoist has an exceptional safe working load for a mobile hoist (385 kg/60 st). The Oxford Calibre meets the unique needs of bariatric care in today's modern healthcare environment. Oxford have designed a special range of bariatric slings, ensuring safe and comfortable transfers for the bariatric service users.
A large 6-point cradle spreader bar provides excellent spatial area to assist with patient comfort and positioning.
The Class III integrated digital weigh scale (comes as standard) is perfect for monitoring the service users weight. Compact and easy to use, the intuitive controls and dual display eliminates the need for additional equipment and unnecessary transfers.

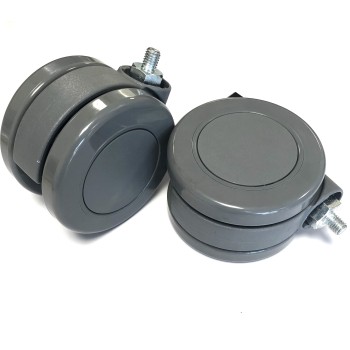

The Calibre has brilliant features to enable easy maneuvering. An over sized push handle ensures improved handling and transferring, whilst the foot 'push pad' reduces the force needed to initiate forward movement. The Calibre Mobile Hoist has twin pivoted front castors which also aid the maneuverability, especially over uneven and rough surfaces. The removable bump guards allow you to protect the legs from damage when transferring.

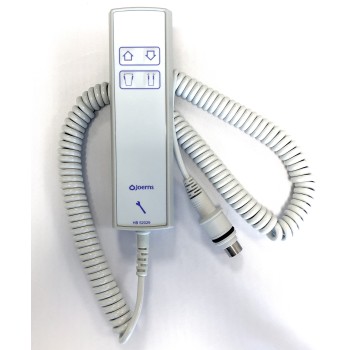

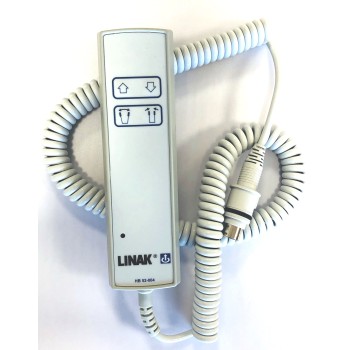

Electrical powered leg positioning allows for better access around every day obstacles such as wheelchairs, large chairs and sofas. The easy to use handset eliminates the need for the manual leg adjustment.

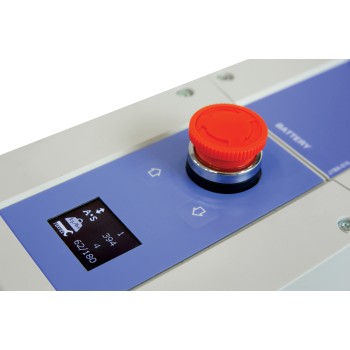

The Smart Monitor control box records the exact amount of work completed by the actuator every time it has been used. The diagnostics system notifies the user to schedule key maintenance, ensuring the Oxford Stature Hoist remains in optimum condition.
The Oxford Calibre's incredible lifting range covers a variety of transfers including:
- Bed to Chair
- Chair to Chair
- Floor to Chair
Features
- Has a huge safe working load (SWL) of 385 kg (60 stone)
- Powered Leg Positioning
- Ergonomic design
- Smart TM Monitor control box diagnostic results
- Large push handle for easy maneuverability
- 6-Point cradle (Large)
- Two Pivoted Castors
- Integrated Class III digital weighing scale
Whats included
- 6-point cradle Spreader Bar
- Integrated Class III Weighing Scale
- Battery
- Charger
- 5 year Warranty on Hoist frame & actuator
- 1 year Warranty on battery, charger and handset and castors
- If a call out is needed, this service is chargeable
Slings
| OXFORD CALIBRE BARIATRIC HOIST | |
| Safe Working Load | 385kg |
| Maximum Overall Length | 625mm |
| Minimum Overall Length | 1700mm |
| Maximum Overall Height | 2250mm |
| Minimum Overall Height | 1590mm |
| Maximum Height to Attachment Point | 1930mm |
| Minimum Height to Attachment Point | 755mm |
| Height at Maximum Reach | 1710mm |
| Reach at Maximum Height | 710mm |
| Reach at Minimum Height | 66mm |
| Turning Radius | 1940mm |
| Legs Open (External Width) | 1400mm |
| Legs Open (Internal Width) | 1245mm |
| Legs Closed (External Width) | 845mm |
| Legs Close(Internal Width) | 680mm |
| Overall Height of Legs | 115mm |
| Ground Clearance | 15mm |
| Front Twin Castors | 100mm |
| Rear Brake Castors | 100mm |
| Total Weight | 112kg |
| Power Pack Weight | 3kg |
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader's discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
