Oxford Easytrack FS Gantry Hoist System – 3 Metre Extended Rail

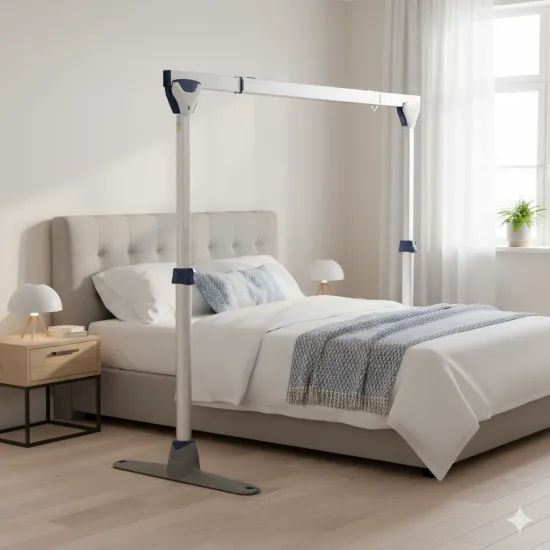

The Oxford Easytrack FS with 3 metre extended rail is a lightweight, freestanding portable gantry system ideal for safe and reliable transfers in locations where a fixed ceiling hoist is not possible. Whether used at home, while travelling, or in temporary care environments, this system allows for seamless mobility and independence.

The track system assembles in just minutes without tools, and the extended rail allows the frame to span large beds, baths, or chairs. Built with ergonomics in mind, the Easytrack FS supports a Safe Working Load of 200 kg (31 stone) and offers emergency descent functionality for added safety.

Though this listing includes only the gantry and extended track, it is fully compatible with the Oxford Voyager Portable Hoist, which can be purchased separately. The hoist attaches effortlessly to the track system using a secure and user-friendly design. It is also now compatible with the Air 200, the advantage of the Molift Air versus a conventional portable gantry hoist is that the sling bar lowers rather than the whole motor, leading to an enhanced experience for the person being hoisted and their carer.

The Oxford Easytrack FS supersedes the Huntleigh Healthcare Highlite Portable Transfer System, which is no longer manufactured. It continues to set the standard in portable hoisting, offering practical design, easy assembly, and compact transportability.

Key Features:

  • Includes 3 metre (127") extended rail for maximum reach
  • Safe working load (SWL) of 200 kg (441 lbs / 31 st)Portable Gantry Hoist for Jacuzzi's
  • Assembles quickly without tools – single person setup
  • Emergency descent mechanism for added safety
  • Lightweight and easy to transport or store
  • Compatible with Oxford Voyager Portable Hoist, Maxi Sky 440 & Molift Air 200 (sold separately)
  • Supersedes the Huntleigh Highlite System
  • Perfect for domestic use, temporary installations or travel

Product FAQs

What is the difference between using the Voyager Portable and Molift Air 200 on an Easytrack FS Gantry
Although both serving the same purpose and work very well on an Easytrack FS, The Molift Air 200 has a full selection of sling-bars and the advantage of the Molift Air versus a conventional portable gantry hoist is that the sling bar lowers rather than the whole motor, leading to an enhanced experience for the person being hoisted and their carer.
What is the Oxford Easytrack FS Gantry?
The Oxford Easytrack FS Gantry is a portable, freestanding overhead track system designed for safe patient lifting without requiring permanent structural installation. It works with compatible hoists to support transfers in bedrooms, bathrooms, and temporary care environments.
How does the Easytrack FS Gantry work?
The system uses lightweight aluminium rails, adjustable uprights, and a freestanding frame to create a stable overhead track. A ceiling‑style hoist then runs along the track to complete the lift.
Is the Easytrack FS suitable for domestic homes?
Yes. It’s specifically designed for home care, rented properties, and environments where permanent fixtures aren’t allowed. It assembles without tools and leaves no marks.
Can one person assemble the Easytrack FS Gantry?
Yes. It is easily assembled by one person.
Does the Easytrack FS require tools or permanent installation?
No tools, drilling, or structural fixing are required. The freestanding design makes it ideal for temporary or multi‑room use.
Can the gantry be moved once assembled?
It can be relocated, but should be moved without a patient attached. Disassembly and reassembly take only minutes.
How long does it take to assemble the Easytrack FS?
Once you have tried assembling and dissembling it a few times, it won't take more than a couple of minutes to set up!

Product Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader's discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.

Product Specifications

SpecificationEasytrack FS Gantry
Safe Working Load200kg / 441Ibs / 31st
Floor to Top of Rail1,830 – 2,406mm (72 – 95”)
Floor to Bottom of Rail1,680 – 2,256mm (66 – 89”)
Exterior Width2,210 – 3,230mm (87 – 127”)
Interior Width1,910 – 2,930mm (75 – 115”)
Footplate Length1,075mm (42”)
Footplate Width150mm (6”)
Rail Weight14kg (31Ibs)
Post Weight (each)9.5kg (21Ibs)
Footplate5.5kg (12Ibs)
