← Back to Search > Oxford Major 200
📋 Go to Parts List

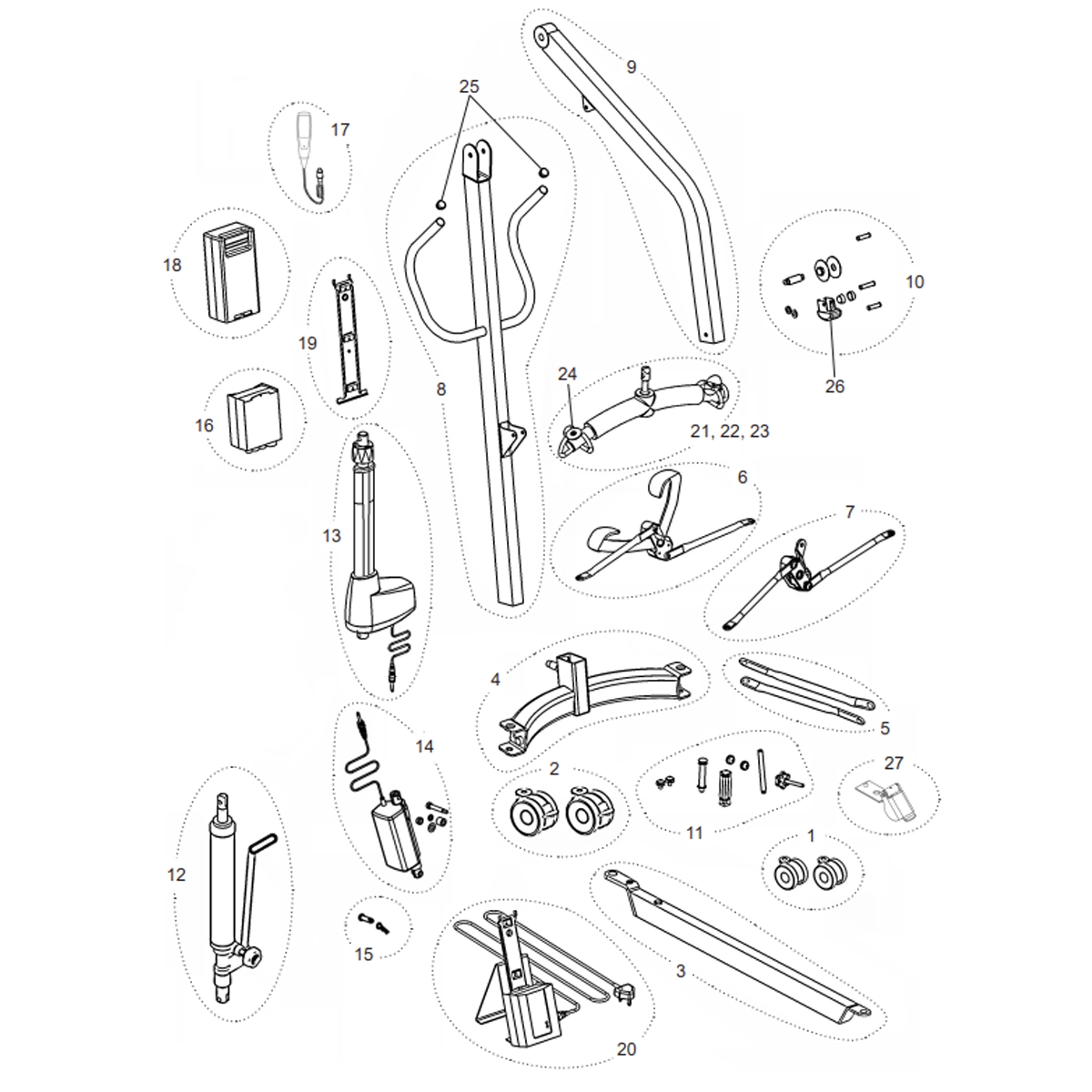

Diagram

Oxford Major 200
📱 Click image to enlarge

Available Spare Parts

No.ModelProductPricePack Qty*Quantity
1 SP39001256 Oxford Front Castors 75mm (inc. fixings) £73.132
2 SP39001257 Oxford Rear Castors 100mm (inc.fixings) £97.012
3 SP31009208 Oxford Leg Major 200/Maxi 180 £156.961
4 SP39001265 Oxford Cross Member - Major 200/Maxi 180 (inc.fixings) £313.931
5 SP39001264 Oxford Tie Rods With Fixings - Major 200/Maxi 180 (Pair) £56.061
6 SP39001275 Oxford Foot Pedal Assembly - Major 200/Maxi 180 £218.631
7 SP39001405 Oxford Leg Mechanism Assembly £114.921
- SP39001189 Oxford Classic Adhesive Foot Pedal Pads (not shown) £41.7920
- SP39001190 Oxford Foot Pedal Fastening Kit (not shown) £56.061
- SP39001181 Oxford Foot Pedal Pivot Cover (not shown) £109.3220
8 SP39001262 Oxford Mast (inc. fixings) £294.301
9 SP39001259 Oxford Boom (inc. fixings) £276.091
10 SP39001268 Oxford Top Fixing Kit £76.111
11 SP39001269 Oxford Base Fixing Kit £89.691
12 SP39001271 Oxford Hydraulic Pump (inc. fixings) £850.691
13 SP39001263 Oxford Actuator LA44 (inc. fixings) £659.001
- SP11013922 Oxford Actuator Power lead LA44 (not shown) £28.361
14 SP39001396 Oxford Leg Actuator (inc. fixings) £394.761
15 SP39001398 Oxford Lower Actuator Fixing Kit £145.7510
16A SP39001167 Oxford Smart Monitor Control Box (1 Channel) £378.391
16B SP39001370 Oxford Smart Monitor Control Box (4 way) electric leg £468.571
17A SP39001180 Oxford Handset (Smart Monitor Only) - 1 channel £88.471
17B SP39001394 Oxford Electric Leg Handset 4 Buttons (Smart Monitor) - 2 channel £96.741
- SP39001178 Oxford Actuator Smart Monitor Reset Handset (not shown) £136.851
- SP39001179 Oxford Smart Monitor Service Reset Calibration Handset (not shown) £136.851
18 SP11012180 Oxford Advance Battery £201.801
19 SP39001201 Oxford Mounting Bracket (inc. fixings) £70.081
20 SP39001183 Oxford Battery Charger and Stand Assembly (with power lead) £256.461
- SP11012183 Oxford Charger lead (UK) £49.051
- SP11012184 Oxford Charger lead (EU) £49.051
21 SP31009237 Oxford Spreader Bar (Small) £173.411
22 SP31009196 Oxford Spreader Bar (Standard) £188.751
23 SP31009197 Oxford Spreader Bar (Large) £211.171
- SP11014250 Oxford Classic Standard Spreader Bar Cover (not shown) £63.061
- SP39001172 Oxford Bar Fixing Kit (not shown) £88.281
24 SP39001304 Oxford Spreader Bar Sling Retaining Washer Kit £25.382
- SP39001279 Oxford Classic Spreader Bar Fulcrum Pin Cap (not shown) £14.022
- SP11014470 Oxford Decal set (Electric) Major 200 (not shown) £53.261
- SP11014484 Oxford Decal Set (Hydraulic) Major 200 (not shown) £53.261
- SP39001198 Oxford Classic Circlips (not shown) £32.22100
25 SP39001182 Oxford Push Handle Caps £11.2120
26 SP39001280 Oxford Boom End Cap £74.2820
- SP39001277 Oxford 19mm Grey Screw Covers (not shown) £22.4020
- SP39001278 Oxford 25mm Grey Screw Covers (not shown) £28.3612
- SP39001397 Oxford Rectangular Tube Insert for Leg Actuator Bracket - White (not shown) £78.4910
- SP39001399 Oxford 19mm Uni Cap - White (not shown) £9.8210
27 SP31009215 Oxford Straight-line Steering Device £37.851
- SP11014212X10 Brass Leg Bearing Washer (not shown) £8.2510
- SP0Y0381 Spreader Bar and 'O' Ring Kit £25.235
Total Items:

* Pack Qty indicates the number of items included with this part code.

×
